Home > Products > soft starter > Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

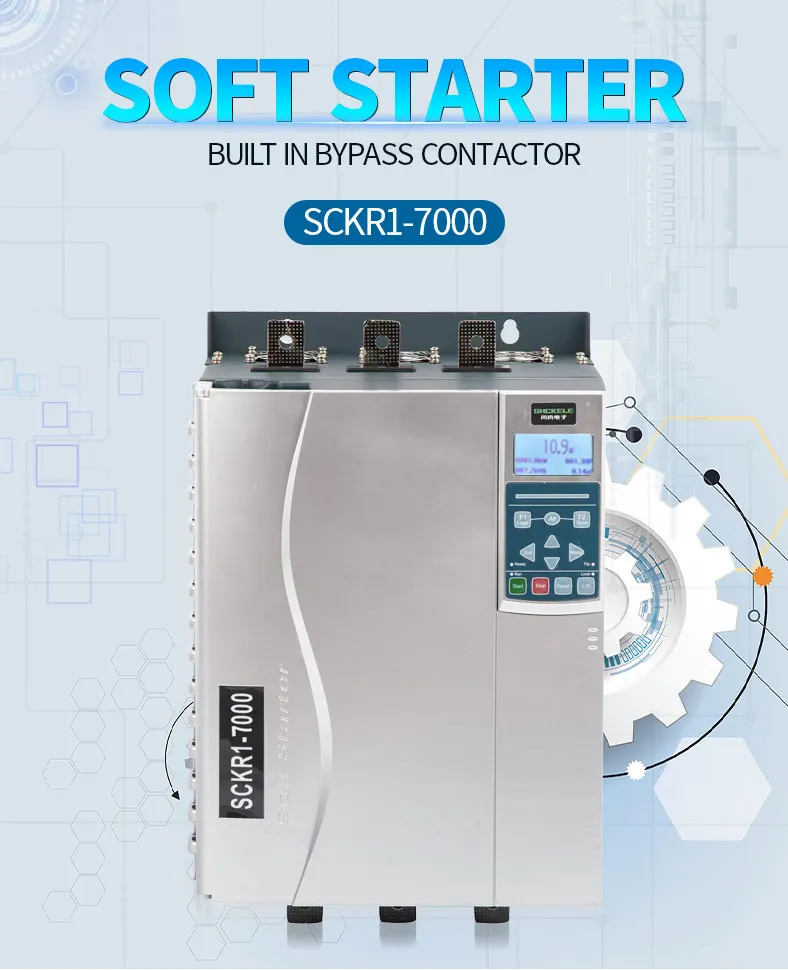

Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

Product Description The soft starter is advanced digital soft starter solution is suitable for the power of 5.5kW TO 800KW motor provides a set of perfectand the installation of the system has the function of protection even in the worst environment also can ensure reliable performanceTWO PHASE OPER......Keywords:Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor, Built in Bypass Soft Starter, Custom Language

Send Inquiry

Product Description

Product Description
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

The soft starter is advanced digital soft starter solution is suitable for the power of 5.5kW TO 800KW motor provides a set of perfectand the installation of the system has the function of protection even in the worst environment also can ensure reliable performance
TWO PHASE OPERATION FUNCTION
When any phase of the SCR of the soft starter breaks down, the emergency function is opened and it can still run normally







FIRE FIGHTING FUNCTION Turn on the fire fighting function of the soft starter, and all p rotection functions will be turned off, so that the soft starter can operate normally and the firemen can put out the fire.
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

Do not need to install the external bypass contactor, new built-in bypass contactorThree times higher than that of ordinary contactor performance, heat dissipation is 2.6 times and 25% security Energy saving 20% service life can reach more than 100000 times
LCD display size12.4CM*6.5CMThickness 1.6cm
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

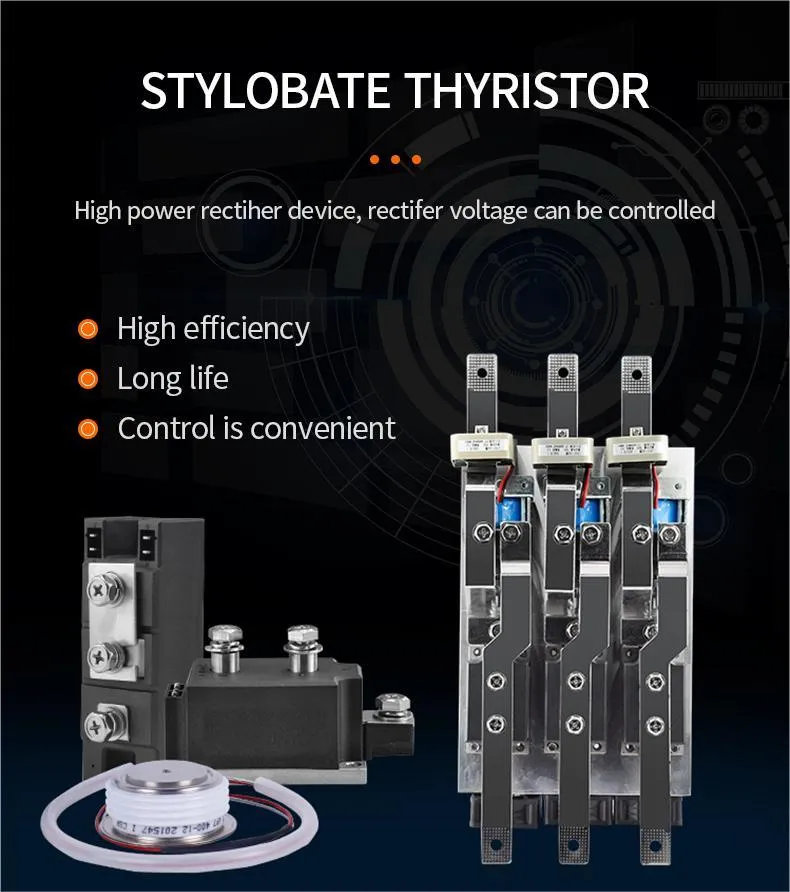

IGBT and DSP: Infineon and TI
The bronze medal is the standard configuration of SCKR1-7000 series with 5.5KW to 37KW
The dimensions of the radiator 160*130*30
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

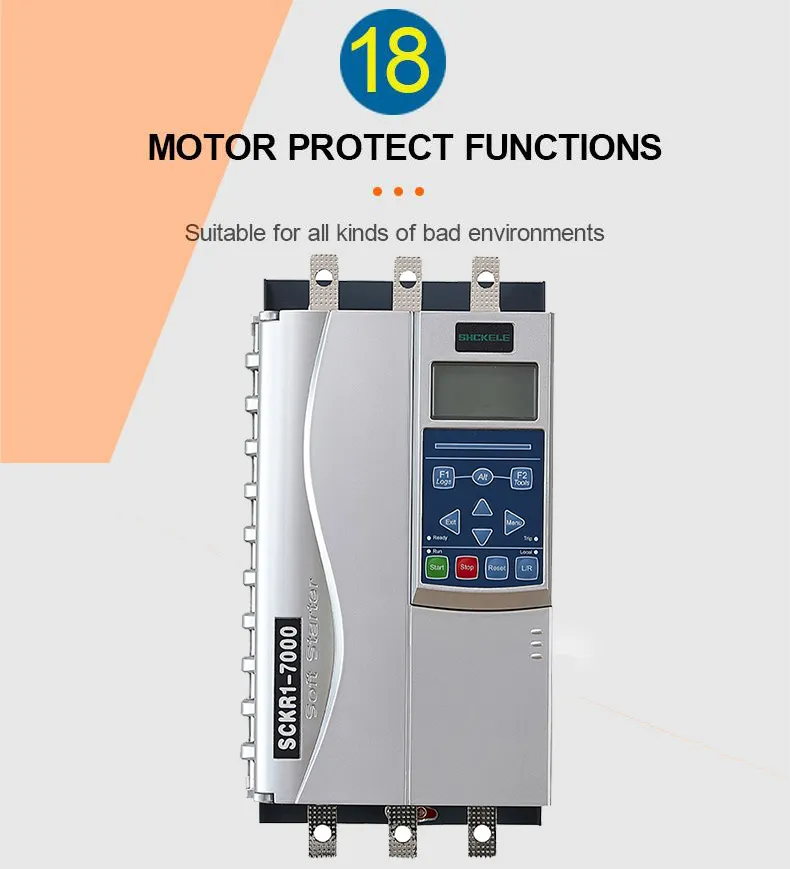

18 MOTOR PROTECT FUNCTIONS
Suitable for all kinds of bad environments
1.Start overload protection
2.Running overload protection
3.Starting overcurrent protection
4.Running over current proterction
5. Overvoltage protection
6.Under voltage protection
7.Three-phase unbalance protection
8.Start timeout protection
9.Jog timeout protection
10.Underioad Protection
11.Soft start overheating Protection
11.Soft start overheating Protection
13.Phase-to-phase short circuit Protection
14.Ground Fault Protection
15.Phase sequence protection
16.Thyristor breakdown protection
17.External fault protection
18.Frequency protection
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

series product

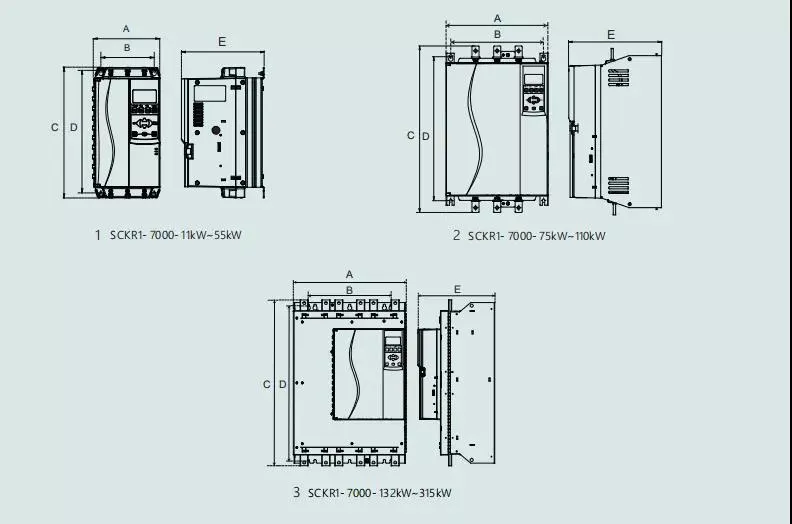

Product dimension
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

Model
 Overall dimension(mm)


 Install dimension(mm)



Drawing

A
C
E
B
D
d

15KW
152
292
215
92
269
M6
1

QUICK SETUP

The Quick Setup menu allows you to quickly configure the soft starter for common applications. The soft starter selects
thearameters related to the application and recommends tvpical settines. Yo can adjust each parameter according to your actual needs.Always set parameter A, the rated cul rent of the mptor to match the rated current indicated on the motor plate.The recommended valu is the minimum rated current of the starter
On the screen,the highlighted yalue is the recommended yalueand the value marked with is the loaded value
Application
Parameter
Suggested Value
Centrifugal pump
Motor rated current
Starting method
Adaptive starting curve
Start ramp time
Stop mode
Adaptive stop curve
Stop time
Depending on model
Adaptive Control
Early acceleration
10 seconds
Adaptive Control
Deceleration
15 seconds
Submersible pump
Motor rated current
Starting method
Adaptive starting curve
Start ramp time
Stop mode
Adaptive stop curve
Stop time
Depending on the model
Adaptive Control
Speed up early
5 seconds
Adaptive Control
After decelerating.
5 seconds
Demped fan
Motor rated current
Starting method
Current limit
Demending on model
Constant current
350%
Undamped fan
Motor rated current
Starting method
Adaptive starting curve
Start ramp time
Starting limit time
Locked rotor time
Depending on model
Adaptive Control
Constant acceleration
20 seconds
30 seconds
20 seconds
Screw compressor
Motor rated current
Starting method
Start ramp time
Current limit
Depending on model
Constant current
5 seconds
400%
Reciprocating compressor
Motor rated current
Starting method
Start ramp time
Current limit
Depending on model
Constant current
5 Second
450%
Conveyor belt
Motor rated current
Starting method
Start ramp time
Current limit
Stop mode
Adaptive stop curve
Stop time
Depending on mode
Constant current
5 seconds
400%
Adaptive Control Constantdeceleration10seconds
Conveyor belt
Motor rated current
Starting method
Start ramp time
Current limit
Starting limit time
Locked rotor time
Depending on mod
Constant current
10 seconds
400%
30 seconds
20 seconds
Jaw Crusher
Motor rated current
Starting method
Start ramp time
Current limit
Starting limit time
Locked rotor time
Depending on model
Constant current
10 second
450%
40 seconds
30 seconds
                                                                          PRODUCT PARAMETERS


BRAND
SHCKELE Lectrical
MODEL
SCKR1-7000
NAME
Soft starter
TEMPERATURE
25°C~60°C0.
LOLTAG
30%~70%UE
COMMUNUCATION
RS485 series communication
CURRENT
1.5~50 e
FREQUENCY
≤20TIMES /HOUR
VOLTAGE
AC380±15%
FREQUENCY
50HZ/60HZ
STORAGE
45°C~75°C
COOLING MODE
Fan cooling
LANGUAGE
Seven language
PROTECTION
IP20
HEIGHT
Below 5000 meters above sea level
Feature List
Optional soft start curve
Adaptive control


Constant current


Current ramp

Optional soft stop curve
Taxi stop


Timed voltage ramp soft stop


Adaptive control


Brake

Extended input and output options
Remote control input
(3 fifixed inputs, 2 programmable inputs)


Relay output
(1 fifixed output, 3 programmable outputs)


Analog output


Built-in PT100 RTD input


Optional expansion card

Easy-to-read display shows comprehensive feedback
Removable operation panel


Multilingual feedback


 Event record with date and time stamp


Working counter (starting times, running hours,kilowatt hours)


Performance monitoring (current, voltage, power factor, kilowatt hours)


User-programmable monitoring screen

Customizable protection
Motor overload


Start-up timeout


Under current


Transient overcurrent


Current imbalance


Power frequency


Input trip


Motor thermistor


Power circuit


Phase sequence

Models that meet all your connectivity needs
23A-1600A (rated)


200VAC-440VAC


380VAC-690VAC


 Internal bypass selection


Star connection or delta connection

Advanced application optional features
Input / output extension


 RTD and ground fault protection


DeviceNet, Modbus, Profifibus, Ethernet (Ethernet IP,
Modbus TCP, Profifinet) or USB communication module


Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Certifications
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
Product packaging
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor

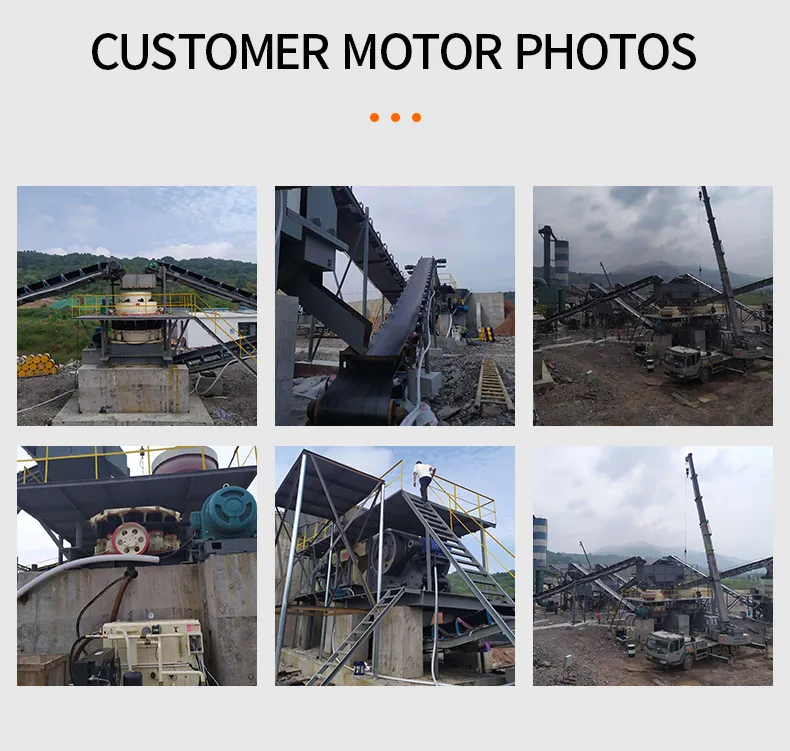

Customer Photos
Custom Language Built in Bypass Soft Starter 15kw 690V AC Asynchronous Motor for Pump/Compressor
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to ******,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
