Home > Products > soft starter > Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor

Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor

Product Description Specifications: Overall dimension(mm) Install dimension(mm) Drawing W1H1DW2H2d 7.5KW-45KW14531521585298M8155KW-90KW210360255150343M82115KW-160KW330465255260440M82115KW-160KW490652295335535M82320KW-630KW680840420350780M102ModelVoltage (V)Power (KW)Current (A)18.5-Z38018.53722-......Keywords:Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor, Sea Pump, Gravel Machine

Send Inquiry

Product Description

Product Description
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor

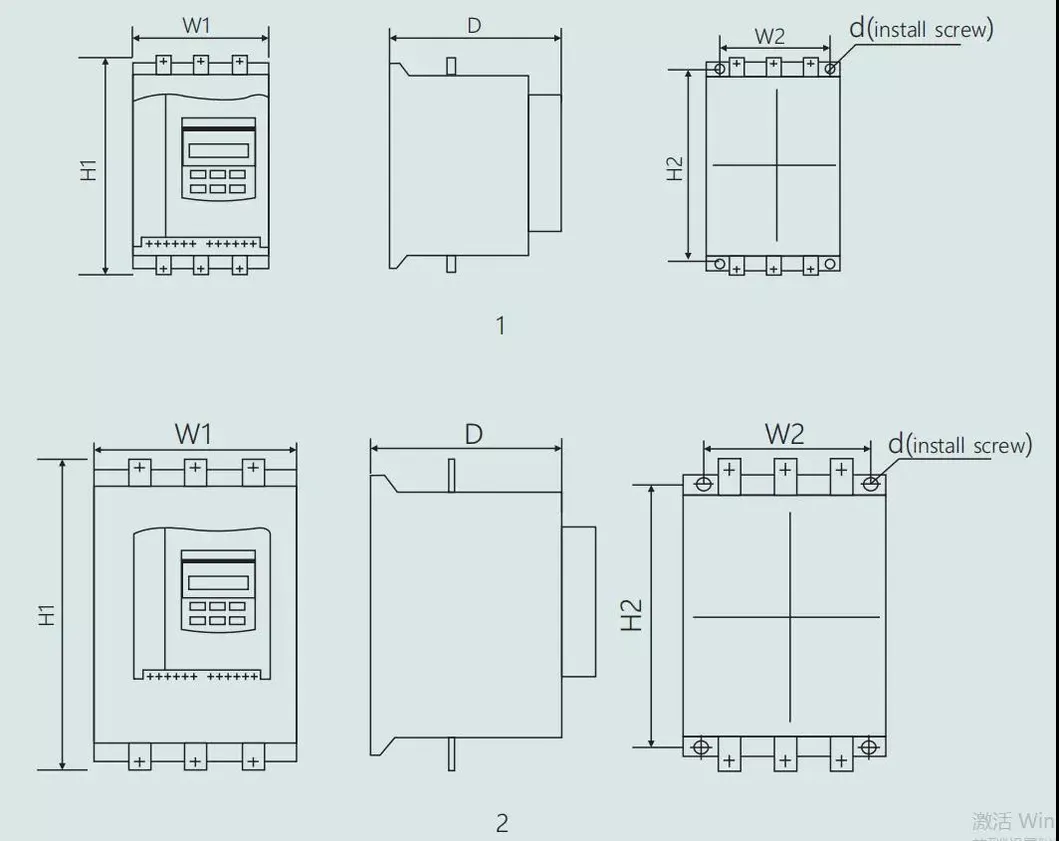

Specifications:
 Overall dimension(mm)


 Install dimension(mm)



Drawing

W1
H1
D
W2
H2
d

7.5KW-45KW
145
315
215
85
298
M8
1
55KW-90KW
210
360
255
150
343
M8
2
115KW-160KW
330
465
255
260
440
M8
2
115KW-160KW
490
652
295
335
535
M8
2
320KW-630KW
680
840
420
350
780
M10
2
Model
Voltage (V)
Power (KW)
Current (A)
18.5-Z
380
18.5
37
22-Z
380
22
45
30-Z
380
30
60
37-Z
380
37
75
45-Z
380
45
90
55-Z
380
55
110
75-Z
380
75
150
90-Z
380
90
180
115-Z
380
115
230
132-Z
380
132
260
160-Z
380
160
320
185-Z
380
185
370
200-Z
380
200
400
220-Z
380
220
450
250-Z
380
250
500
280-Z
380
280
560
320-Z
380
320
630
355-Z
380
355
710
400-Z
380
400
800
450-Z
380
450
900
500-Z
380
500
1000
600-Z
380
600
1200
Input Power Supply:
Input Voltage:Three-phase 380V/480V/660V/690V AC.
Frequency:50/60Hz .
Adaptive Motor:Squirrel-cage three-phase asynchronous motor.
Starting Times:It is recommended not to exceed 20 times per hour.

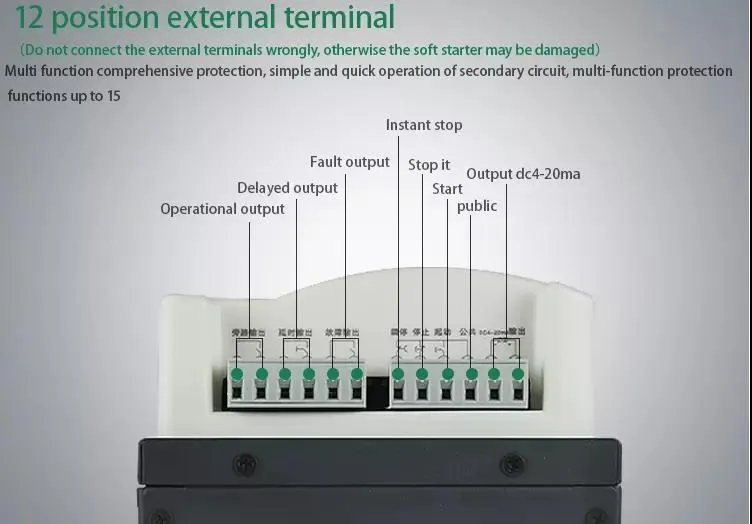

Control Mode:
(1)Operation panel control.
(2)Operation panel + external control.
(3)External control.
(4)External control + COM control.
(5)Operation panel + external + COM control.
(6)Operation panel + COM control.
(7)COM control.
(8)No start or stop operation.



Start Mode:
(1) Current-limiting to start.
(2) Voltage tamp to start.
(3) Torque control + current-limiting to start.
(4) Torque control + voltage ramp to start.
(5) Current ramp to start.
(6) Voltage current- limiting double closed-loop start.



Stop Mode
(1) Soft stop. (2) Free stop.



Protective Function
(1) Open loop protection for soft starter.

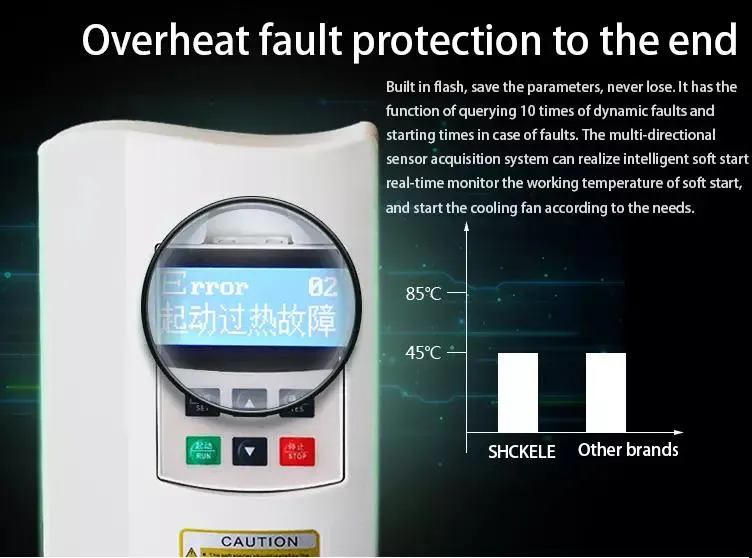

(2) Over-heat protection for soft starter.
(3) Protection for too long starting time.
(4) Input open phase protection.
(5) Output open phase protection.
(6) Unbalanced three -phase protection.
(7) starting over current protection.
(8) Running overload protection.
(9) Under voltage protection for power voltage.
(10) Over voltage protection for power voltage.
(11) Protection for fault setting.
(12) Load short circuit protection.
(13) Auto restart or incorrect wiring protection.
(14) Incorrect wiring protection of external control stop terminals.



Ambient:
Place to be used: Indoor location with good ventilation free from corrosive gas and conductive dust.
Altitude: Below 1000M.It have to rise the rate pwoer when the altitude is more then 1000M. Temperature: -20 +45°C
Humidity: 90%RH without dew condensation.



Structure:
protection Class: IP20.
Cooling Pattern: Fans cooling.

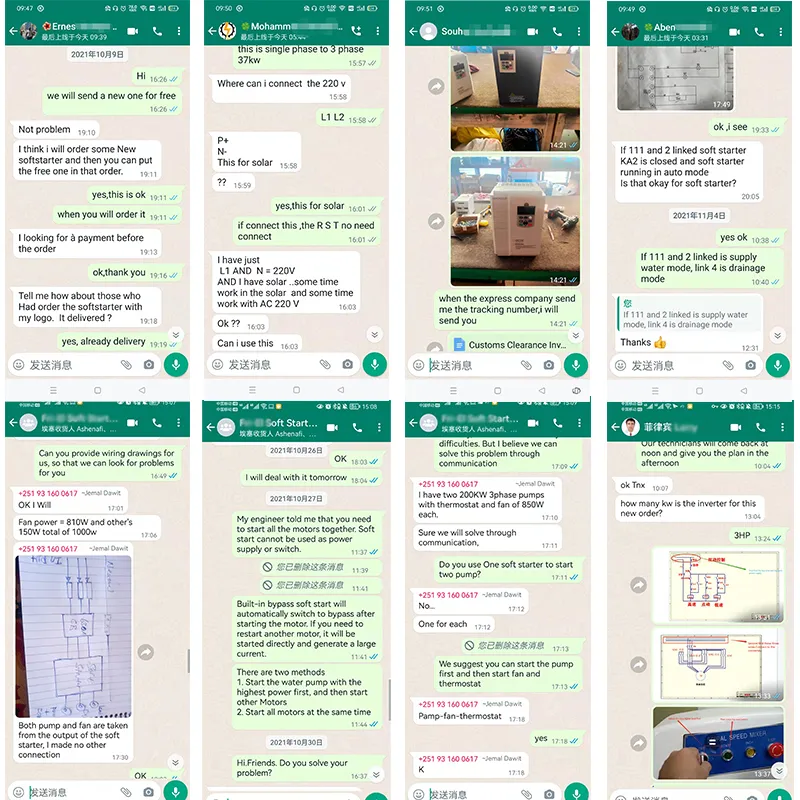

Customer Photos
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor

.
Certifications
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
Factory 50Hz/60Hz 3 Phase 440V 200HP Motor Soft Starter 160kw for AC Electric Motor
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to ******,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.

Payment Terms?
1.100% T/T before shipment for stock supply products; 30% as advance and balance before shipment for production and special design
order.

Is our company accept customized and OEM order ?
Yes. Our factory has very professional engineer and design team to provide special customize products for you. Client only provide
there requirements to us, we can design for you for free. OEM factory is acceptable too. Let our factory to be your own factory.
