Shckele 3phase 380V 22kw~160kw Modbus/RS485 Custom Language Soft Starter

Model Overall dimension(mm) Install dimension(mm) Drawing ACEBDd 5.5KW-55KW15229221592269M6175KW-110KW274408260160385M82132KW-315KW440530290320530M83The Quick Setup menu allows you to quickly confifigure the soft starter for common applications. The soft starter selects the parameters related to......Keywords:Shckele 3phase 380V 22kw~160kw Modbus/RS485 Custom Language Soft Starter, Russian Language, Built-in Bypass Soft Starter

Product Description

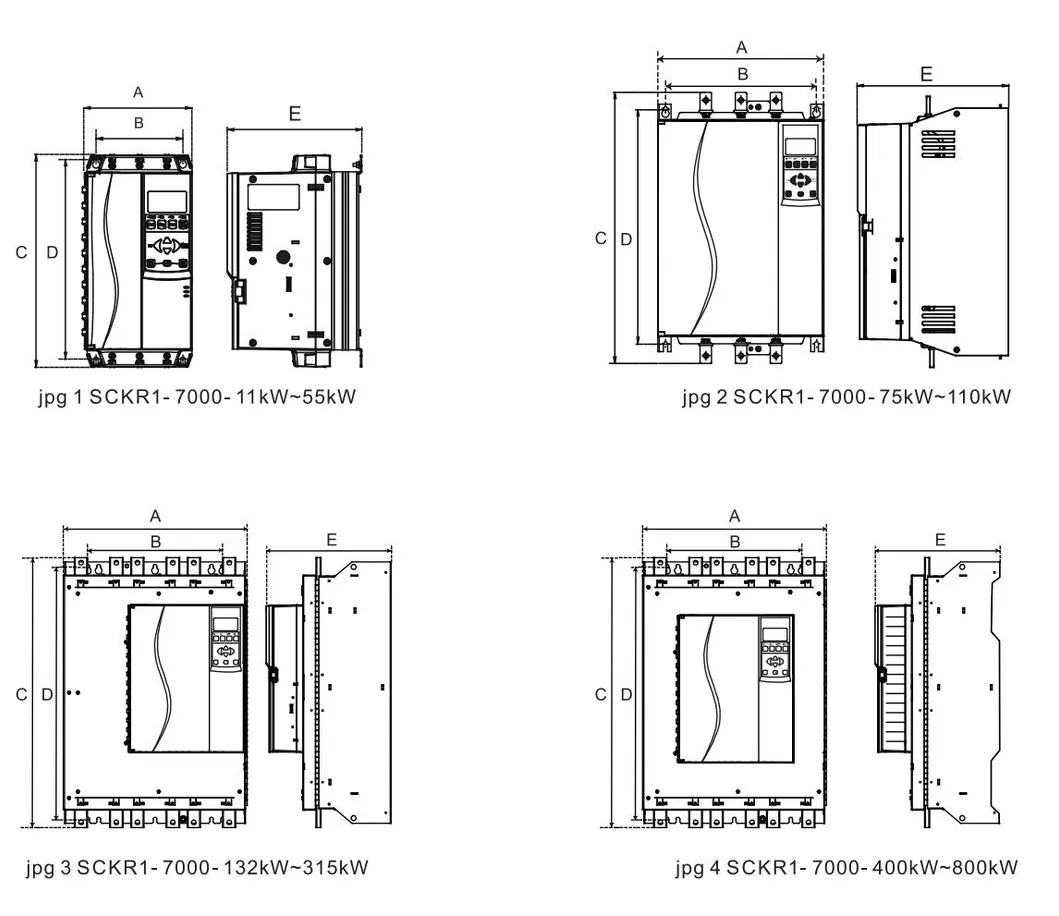

Model	Overall dimension(mm)					Install dimension(mm)		Drawing
Model		A	C	E	B	D	d	Drawing
5.5KW-55KW	152	292	215	92	269	M6	1
75KW-110KW	274	408	260	160	385	M8	2
132KW-315KW	440	530	290	320	530	M8	3

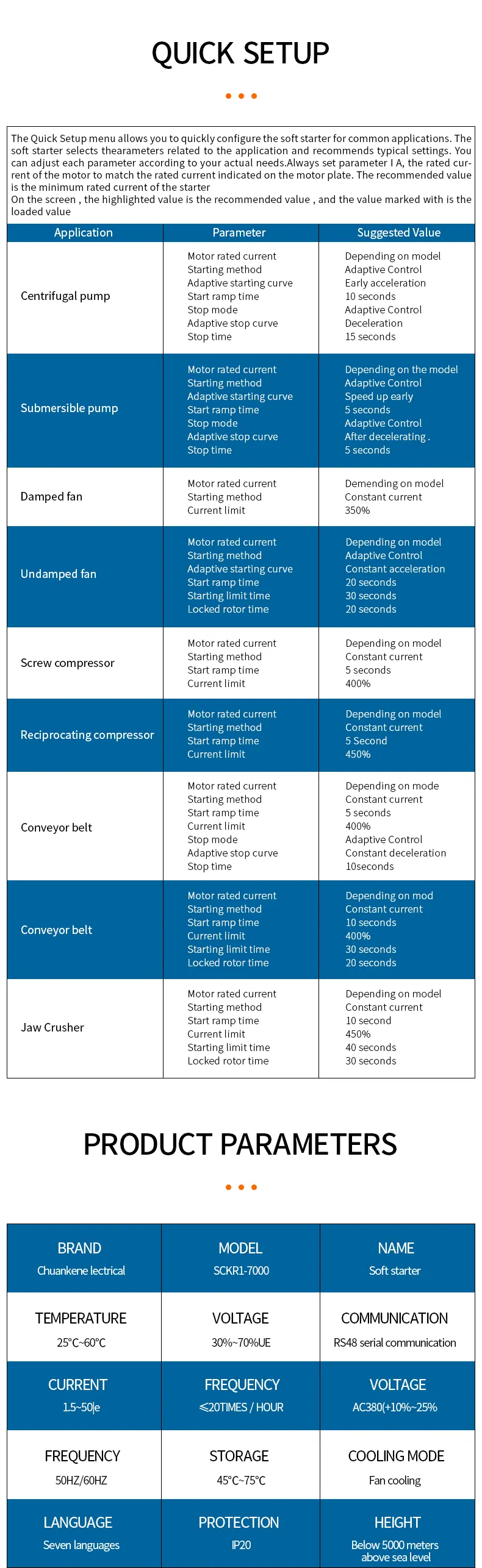

The Quick Setup menu allows you to quickly confifigure the soft starter for common applications. The soft starter selects the parameters related to the application and recommends typical settings. You can adjust each parameter according to your actual needs.
Always set parameter 1A, the rated current of the motor to match the rated current indicated on the motor plate. The recommended value is the minimum rated current of the starter.
On the screen, the highlighted value is the recommended value, and the value marked with is the loaded value.
--------------------------------------------------------------
*ApplicationCentrifugal pump
-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Stop mode Adaptivestop curve Stop time
-Suggested ValueDepending on model Adaptive Control Early acceleration 10 seconds Adaptive Control Deceleration 15 seconds
*ApplicationSubmersible pump

-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Stop mode Adaptivestop curve Stop time
-Suggested ValueDepending on the model. Adaptive Control Speed up early. 5 seconds Adaptive Control After decelerating. 5 seconds
*ApplicationDamped fan
-ParameterMotor rated current Starting method Current limit
-Suggested ValueDepending on modelConstant current350%
* ApplicationUndamped fan
-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Starting limit time Locked rotor time
-Suggested ValueDepending on model Adaptive Control Constant acceleration 20 seconds 30 seconds 20 seconds
* ApplicationScrew compressor
-ParameterMotor rated current Starting method Start ramp time Current limit
-Suggested ValueDepending on modelConstant current5 seconds400%
*ApplicationReciprocating compressor
-ParameterMotor rated current Starting methodStart ramp time Current limit
-Suggested ValueDepending on model Constant current 5 Second 450%
*ApplicationConveyor belt
-ParameterMotor rated current Starting method Start ramp time Current limit Stop mode Adaptive stop curve Stop time
-Suggested ValueDepending on model Constant current 5 seconds 400% Adaptive Control Constant deceleration. 10 seconds
*ApplicationRotary crusher
-ParameterMotor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time
-Suggested ValueDepending on model Constant current 10 seconds 400% 30 seconds 20 seconds
*ApplicationJaw Crusher
-ParameterMotor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time
-Suggested ValueDepending on model Constant current 10 seconds 450% 40 seconds 30 seconds
