Spanish 3 Phase Soft Starter 380V 11kw-15kw for Motor Control

Product Description Model Overall dimension(mm) Install dimension(mm) Drawing ACEBDd 5.5KW-55KW15229221592269M6175KW-110KW274408260160385M82132KW-315KW440530290320530M83ModelVoltagePowerStar connection methodRated current of delta connection methodSCKR1-7000-5.5-Z380V5.5KW11A16ASCKR1-7000-7. 5-Z......Keywords:Spanish 3 Phase Soft Starter 380V 11kw-15kw for Motor Control, Soft Starter 400V 440V, Soft Starter 50Hz/60Hz

Product Description

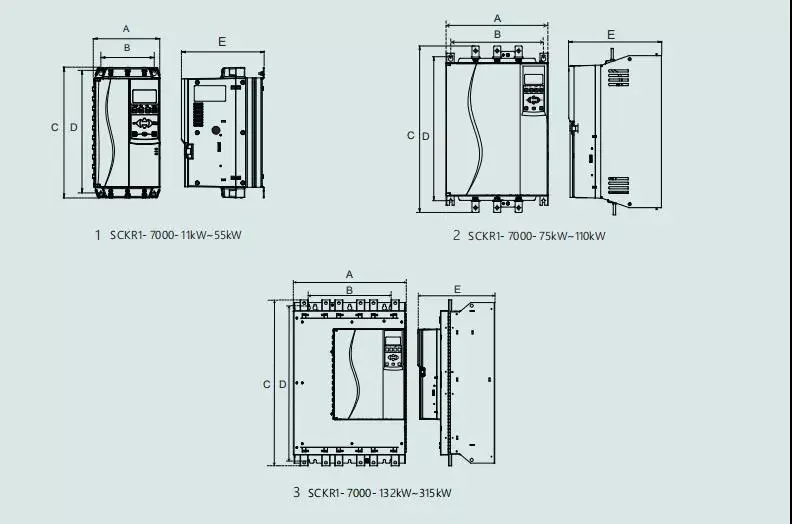

Model	Overall dimension(mm)					Install dimension(mm)		Drawing
Model		A	C	E	B	D	d	Drawing
5.5KW-55KW	152	292	215	92	269	M6	1
75KW-110KW	274	408	260	160	385	M8	2
132KW-315KW	440	530	290	320	530	M8	3

Model	Voltage	Power	Star connection method	Rated current of delta connection method
SCKR1-7000-5.5-Z	380V	5.5KW	11A	16A
SCKR1-7000-7. 5-Z	380V	7.5KW	15A	22A
SCKR1-7000-011-Z	380V	11KW	23A	34A
SCKR1-7000-015-Z	380V	15KW	30A	44A
SCKR1-7000-18.5-Z	380V	18.5KW	37A	55A
SCKR1 -7000-022-Z	380V	22KW	45A	67A
SCKR1-7000-030-Z	380V	30KW	60A	89A
SCKR1-7000-037-Z	380V	37KW	75A	111A
SCKR1-7000-045-Z	380V	45KW	90A	133A
SCKR1-7000-055-Z	380V	55KW	110A	163A
SCKR1-7000-075-Z	380V	75KW	150A	222A
SCKR1-7000-090-Z	380V	90KW	180A	266A
SCKR1-7000-110-Z	380V	110KW	220A	325A
SCKR1-7000-132-Z	380V	132KW	255A	377A
SCKR1-7000- 160-Z	380V	160KW	320A	474A
SCKR1 -7000-185-Z	380V	185KW	370A	548A
SCKR1-7000-200-Z	380V	200KW	400A	592A
SCKR1-7000-220-Z	380V	220KW	425A	629A
SCKR1 -7000-250-Z	380V	250KW	500A	740A
SCKR1-7000-280-Z	380V	280KW	560A	829A
SCKR1-7000-320-Z	380V	320KW	630A	932A
SCKR1 -7000-350-Z	380V	350KW	700A	1036A
SCKR1-7000- 400-Z	380V	400KW	800A	1184A
SCKR1-7000-450-Z	380V	450KW	900A	1332A
SCKR1-7000-500-Z	380V	500KW	1000A	1480A

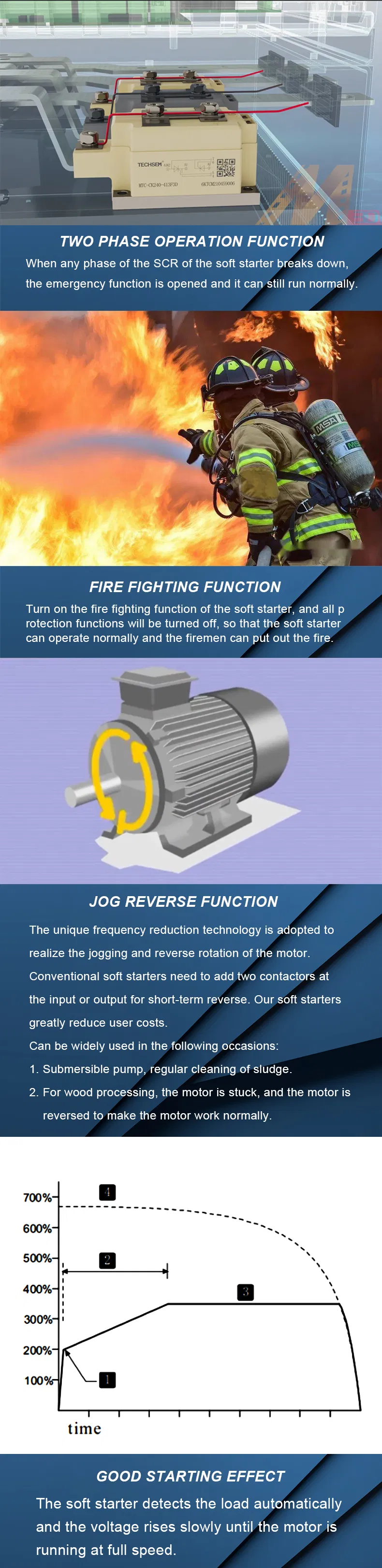

*Optional soft start curve: 1.Adaptive control 2.constant current 3.Current ramp
*Optional soft stop curve: 1.Taxi stop 2. Timed voltage ramp soft stop 3.Adaptive control 4.Brake
*Extended input and output options: 1.Remote control input(3 fixed input,2 programmable inputs) 2.Relay output (1 output, 3 programmable outputs) 3.Analog output 4.Built-in PT100 RTD input 5.Optional expansion card

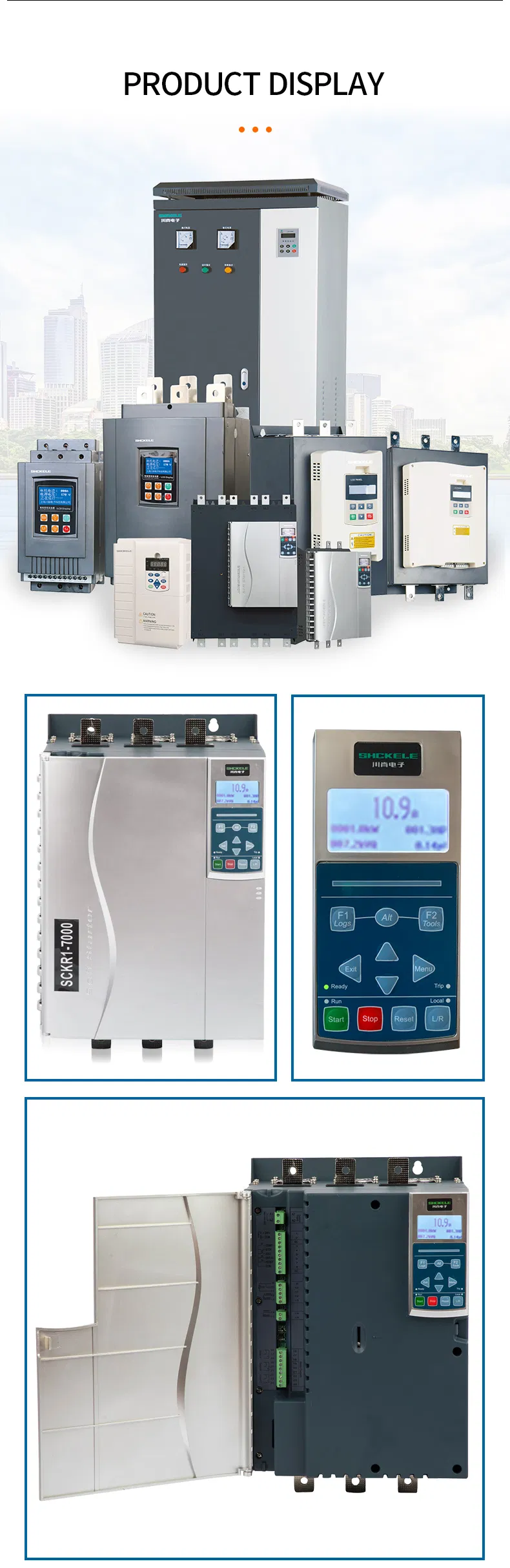

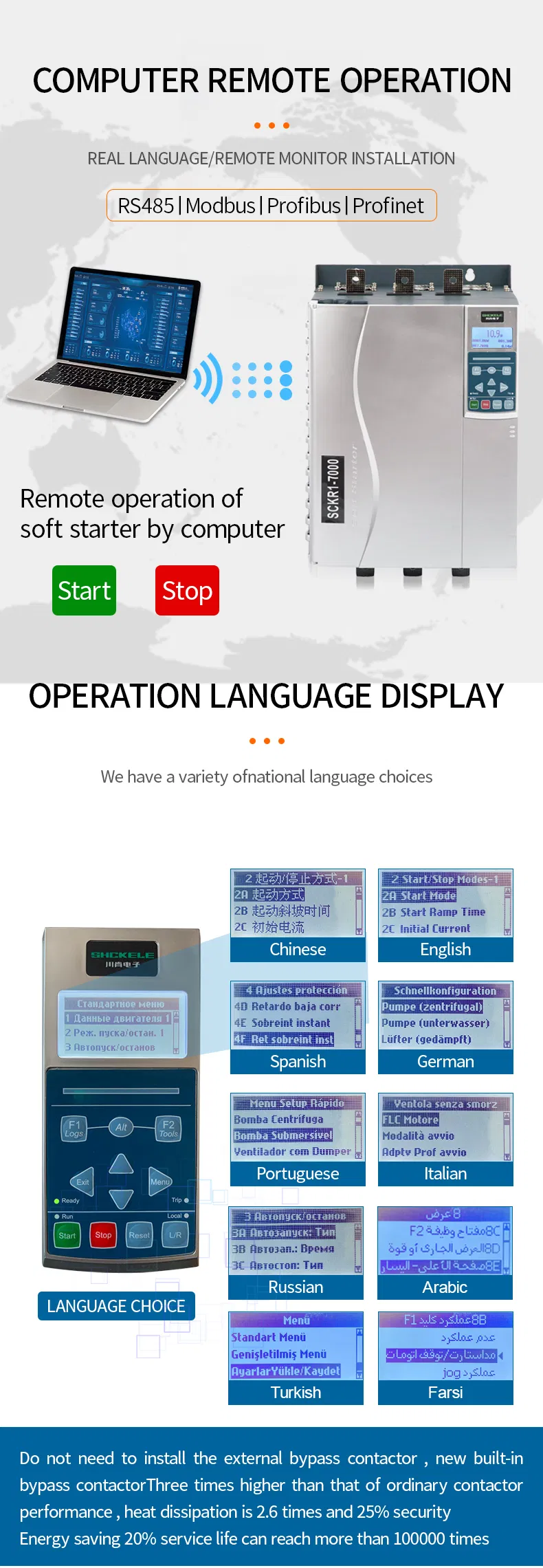

*Easy-to-read display shows comprehensive feedback: 1.Removable operation panel 2.Multilingual feedback 3.Event record with date
and times stamp 4.Performance monitoring(current,voltage,power factor,kilowatt hours) 5.User-programmable ,monitoring screen

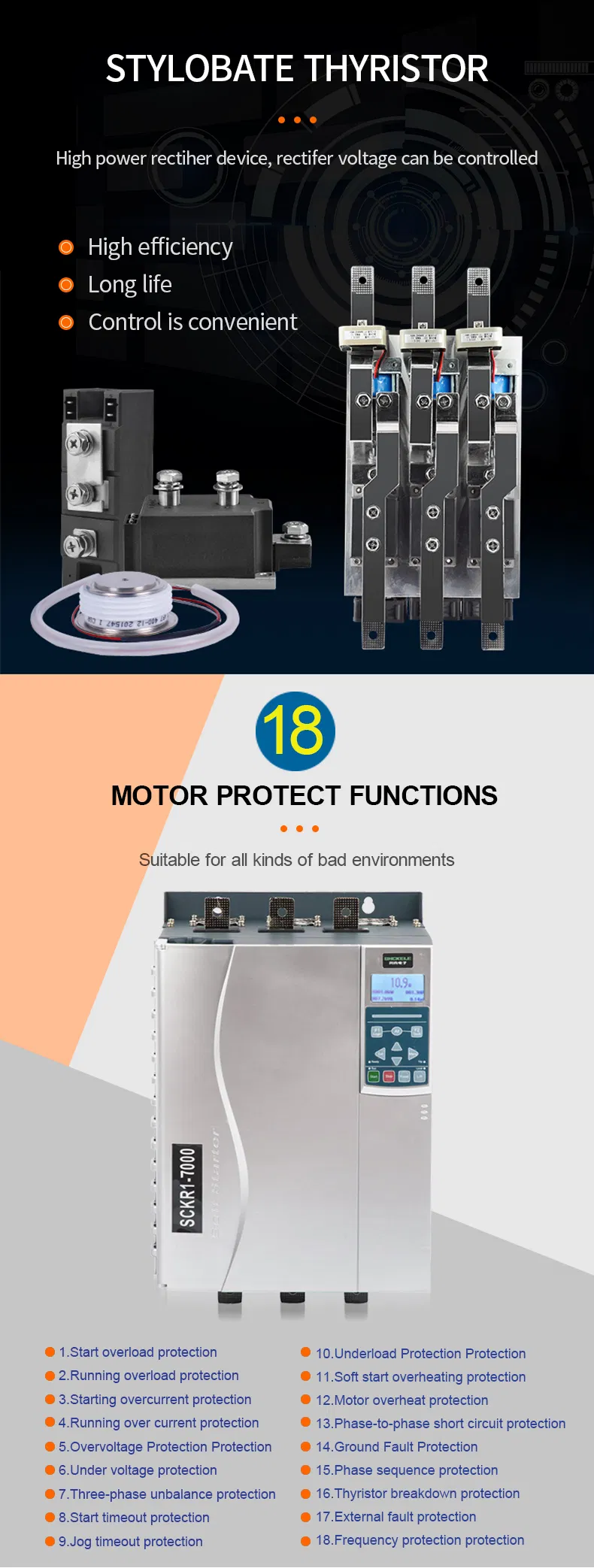

*Customizable protection: 1.Motor overload 2.start-up timeout 3.Under current 4.Transient over current 5.Current imbalance 6.Power frequency 7.Input trip 8.Motor thermistor 9.Power circuit 10.Phase sequence
*Models that meet all your connectivity needs: 1. 23A-1600A(rated) 2.T5,200VAC-525VAC 3. T7,380VAC-690VAC 4. Internal bypass selection. 5.Star connection or delta connection
*Advanced application optional features: 1.Input/output extension 2.RTD and ground fault protection
3.DeviceNet,Modbus,Profibus,Ethernet IP,Modbus TCP,Profinet)or USB communication module

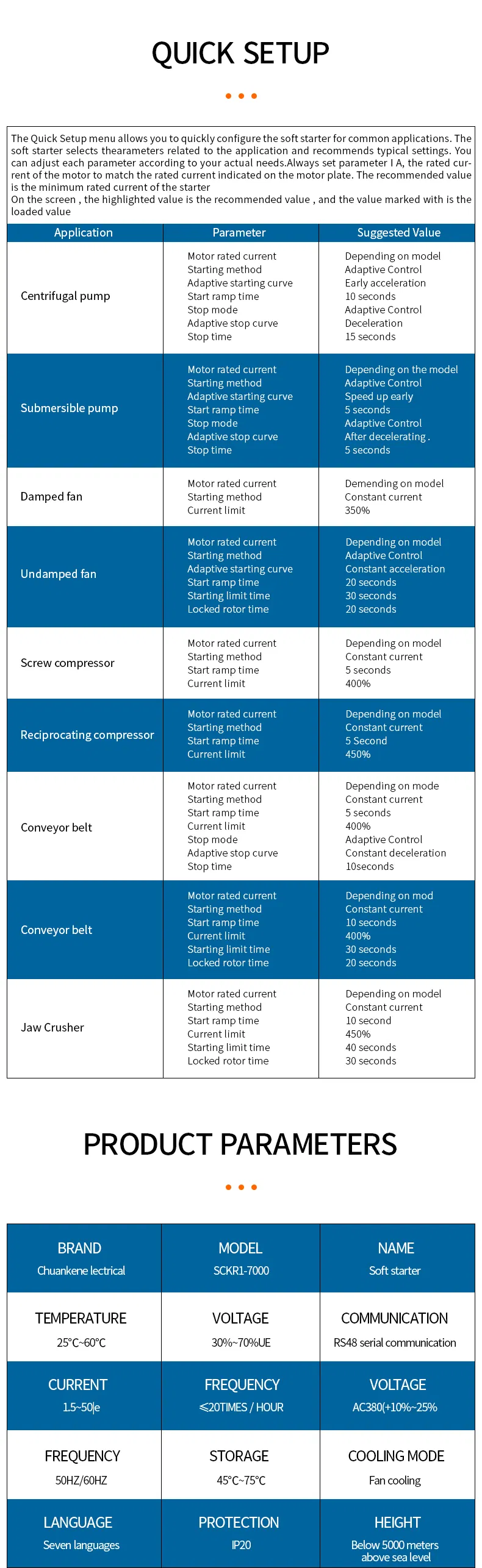

Quick Setup

The Quick Setup menu allows you to quickly confifigure the soft starter for common applications. The soft starter selects the parameters related to the application and recommends typical settings. You can adjust each parameter according to your actual needs.
Always set parameter 1A, the rated current of the motor to match the rated current indicated on the motor plate. The recommended value is the minimum rated current of the starter.

On the screen, the highlighted value is the recommended value, and the value marked with is the loaded value.

--------------------------------------------------------------

*ApplicationCentrifugal pump
-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Stop mode Adaptivestop curve Stop time
-Suggested ValueDepending on model Adaptive Control Early acceleration 10 seconds Adaptive Control Deceleration 15 seconds

*ApplicationSubmersible pump
-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Stop mode Adaptivestop curve Stop time

-Suggested ValueDepending on the model. Adaptive Control Speed up early. 5 seconds Adaptive Control After decelerating. 5 seconds

*ApplicationDamped fan
-ParameterMotor rated current Starting method Current limit
-Suggested ValueDepending on modelConstant current350%

* ApplicationUndamped fan
-ParameterMotor rated current Starting method Adaptive starting curve Start ramp time Starting limit time Locked rotor time

-Suggested ValueDepending on model Adaptive Control Constant acceleration 20 seconds 30 seconds 20 seconds

* ApplicationScrew compressor
-ParameterMotor rated current Starting method Start ramp time Current limit
-Suggested ValueDepending on modelConstant current5 seconds400%

*ApplicationReciprocating compressor -ParameterMotor rated current Starting methodStart ramp time Current limit

-Suggested ValueDepending on model Constant current 5 Second 450% *ApplicationConveyor belt -ParameterMotor rated current Starting method Start ramp time Current limit Stop mode Adaptive stop curve Stop time -Suggested ValueDepending on model Constant current 5 seconds 400% Adaptive Control Constant deceleration. 10 seconds

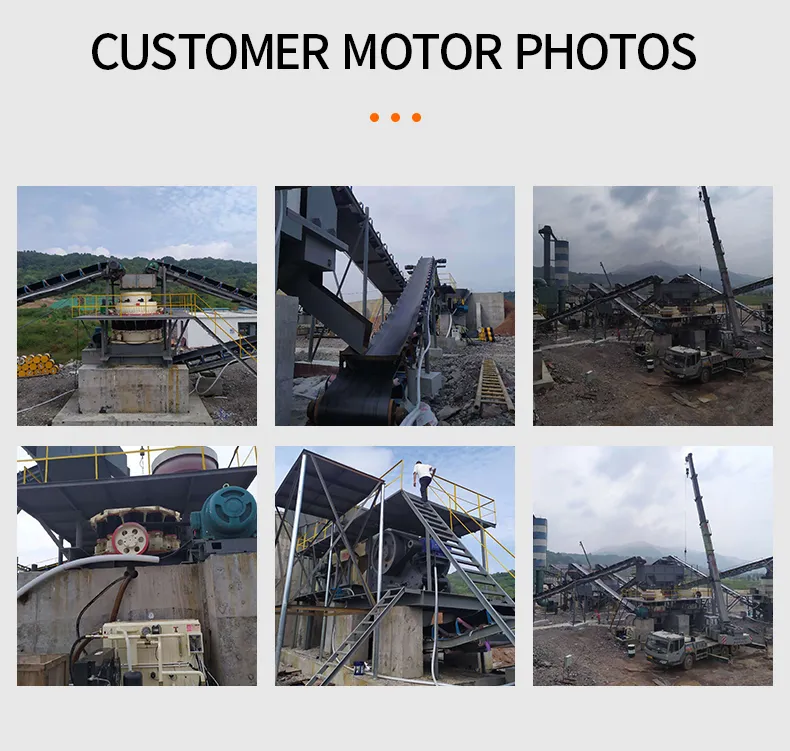

*ApplicationRotary crusher -ParameterMotor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time -Suggested ValueDepending on model Constant current 10 seconds 400% 30 seconds 20 seconds

*ApplicationJaw Crusher -ParameterMotor rated current Starting method Start ramp time Current limit Starting limit time Locked rotor time -Suggested ValueDepending on model Constant current 10 seconds 450% 40 seconds 30 seconds

Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to ******,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.
