Top Quality 30kw Intelligent 3 Phase Online Soft Starter

Product DescriptionProduct OverviewSCKR1-6000 soft starter has 6 starting modes,12 protection function and two vehicle modes.With MCU as the core, installation radial control is suitable for the start of asynchronous motors of various loads:it can makethe motor start smoothly under any conditions, a......Keywords:Top Quality 30kw Intelligent 3 Phase Online Soft Starter, Can Be Customized, Soft Starter for Protect Motor

Product Description

Product Overview

SCKR1-6000 soft starter has 6 starting modes,12 protection function and two vehicle modes.
With MCU as the core, installation radial control is suitable for the start of asynchronous motors of various loads:it can make
the motor start smoothly under any conditions, and reducing the influence of protecting the resistance system and reducing the
influence of starting current on power.Guaranteed motor self-start:smooth and stop,can eliminate the inertia of the resistance
system impact:perfect protection function,extend the system is service life,reduce system cost,improve performance
system:compatible boot device with this function,is the traditional start,Automatic deformer degradation,mathematical control
degradation,is the most ideal way to start,etc

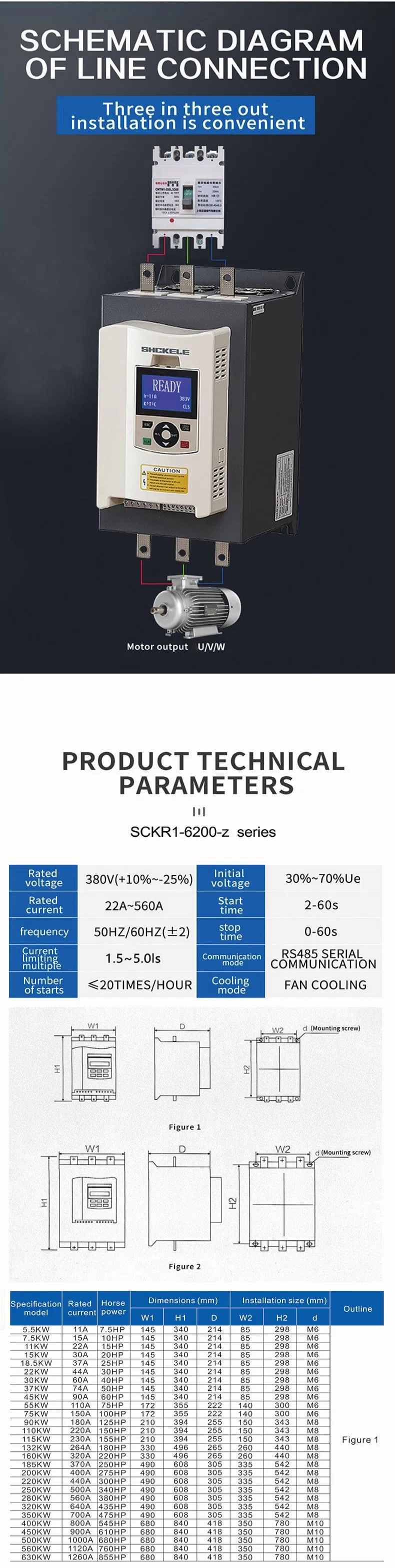

Item			Description
Input Power Supply	Input Voltage	Three-phase 380V/480V/660 AC
Input Power Supply		Frequency	50/60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
Control Mode			(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation.

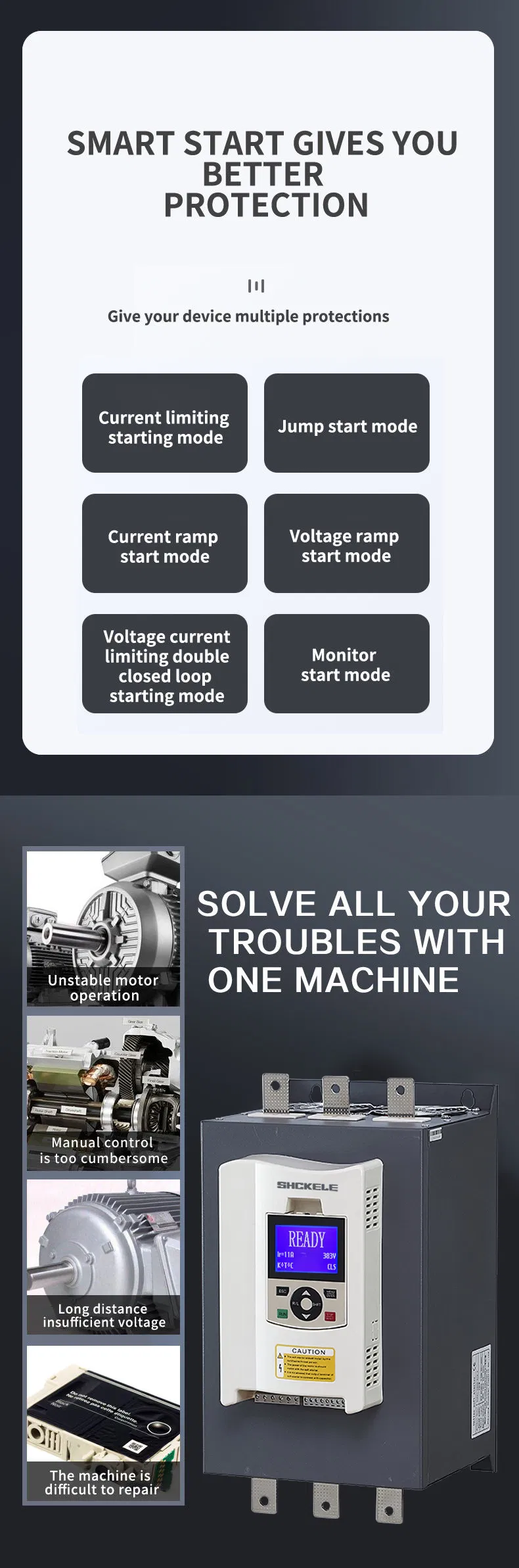

Start Mode			(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start.
Stop Mode			(1) Soft stop. (2) Free stop
Protective Function			(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14)Incorrect wiring protection of external control stop terminals
Ambient	Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It have to rise the rate power when the altitude is more than 1000M.
		Temperature	-20 +45°C
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure	Protection Class	IP20
Structure		Cooling Pattern	Fans cooling.

Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to ******,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you.

Payment Terms?
1.100% T/T before shipment for stock supply products; 30% as advance and balance before shipment for production and special design
order.

Is our company accept customized and OEM order ?
Yes. Our factory has very professional engineer and design team to provide special customize products for you. Client only provide
there requirements to us, we can design for you for free. OEM factory is acceptable too. Let our factory to be your own factory.
