Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart

Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart

Product Description Product OverviewSCKR1-6000 soft starter has 6 starting modes,12 protection function and two vehicle modes.With MCU as the core, installation radial control is suitable for the start of asynchronous motors of various loads:it can make the motor start smoothly under any conditions,......Keywords:Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart, 10 Years Factory 100HP 150HP 110A 110kw 3phas, 11kw 3phase 50Hz/60Hz Three Phase 15kw 380V B

Send Inquiry

Product Description

Product Description
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
 Product Overview
SCKR1-6000 soft starter has 6 starting modes,12 protection function and two vehicle modes.
With MCU as the core, installation radial control is suitable for the start of asynchronous motors of various loads:it can make the motor start smoothly under any conditions, and reducing the influence of protecting the resistance system and reducing the influence of starting current on power.Guaranteed motor self-start:smooth and stop,can eliminate the inertia of the resistance system impact:perfect protection function,extend the system is service life,reduce system cost,improve performance system:compatible boot device with this function,is the traditional start,Automatic deformer degradation,mathematical control degradation,is the most ideal way to start,etc.


Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
*Input Power Supply:
Input Voltage:Three-phase 380V/480V/660V/690V AC.
Frequency:50/60Hz .
Adaptive Motor:Squirrel-cage three-phase asynchronous motor.
Starting Times:It is recommended not to exceed 20 times per hour.
*Control Mode:
(1)Operation panel control.
(2)Operation panel + external control.
(3)External control.
(4)External control + COM control.
(5)Operation panel + external + COM control.
(6)Operation panel + COM control.
(7)COM control.
(8)No start or stop operation.
*Start Mode:
(1) Current-limiting to start.
(2) Voltage tamp to start.
(3) Torque control + current-limiting to start.
(4) Torque control + voltage ramp to start.
(5) Current ramp to start.
(6) Voltage current- limiting double closed-loop start.
Stop Mode
(1) Soft stop.
(2) Free stop.
*Protective Function
(1) Open loop protection for soft starter.
(2) Over-heat protection for soft starter.
(3) Protection for too long starting time.
(4) Input open phase protection.
(5) Output open phase protection.
(6) Unbalanced three -phase protection.
(7) starting over current protection.
(8) Running overload protection.
(9) Under voltage protection for power voltage.
(10) Over voltage protection for power voltage.
(11) Protection for fault setting.
(12) Load short circuit protection.
(13) Auto restart or incorrect wiring protection.
(14) Incorrect wiring protection of external control stop terminals.
*Ambient:
Place to be used: Indoor location with good ventilation free from corrosive gas and conductive dust. Altitude: Below 1000M.It have
to rise the rate pwoer when the altitude is more then 1000M.
Temperature: -20 +45°C
Humidity: 90%RH without dew condensation.
Vibratio: Less than 1.5G.
*Structure:
protection Class: IP20.
Cooling Pattern: Fans cooling.
Model
Voltage(V)
Power(KW)
Current(A)
SCKR1-6000-7.5-Z
380
7.5
15
SCKR1-6000-011-Z
380
11
22
SCKR1-6000-015-Z
380
15
30
SCKR1-6000-18.5-Z
380
18.5
37
SCKR1-6000-022-Z
380
22
45
SCKR1-6000-030-Z
380
30
60
SCKR1-6000-037-Z
380
37
75
SCKR1-6000-045-Z
380
45
90
SCKR1-6000-055-Z
380
55
110
SCKR1-6000-075-Z
380
75
150
SCKR1-6000-090-Z
380
90
180
SCKR1-6000-115-Z
380
115
230
SCKR1-6000-132-Z
380
132
260
SCKR1-6000-160-Z
380
160
320
SCKR1-6000-185-Z
380
185
370
SCKR1-6000-200-Z
380
200
400
SCKR1-6000-220-Z
380
220
450
SCKR1-6000-250-Z
380
250
500
SCKR1-6000-280-Z
380
280
560
SCKR1-6000-320-Z
380
320
630
SCKR1-6000-355-Z
380
355
710
SCKR1-6000-400-Z
380
400
800
SCKR1-6000-450-Z
380
450
900
SCKR1-6000-500-Z
380
500
1000
SCKR1-6000-600-*Z
380
600
1200
SCKR1-6000-630-Z
380
630
1260
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart

Relate Products
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Product packaging
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart

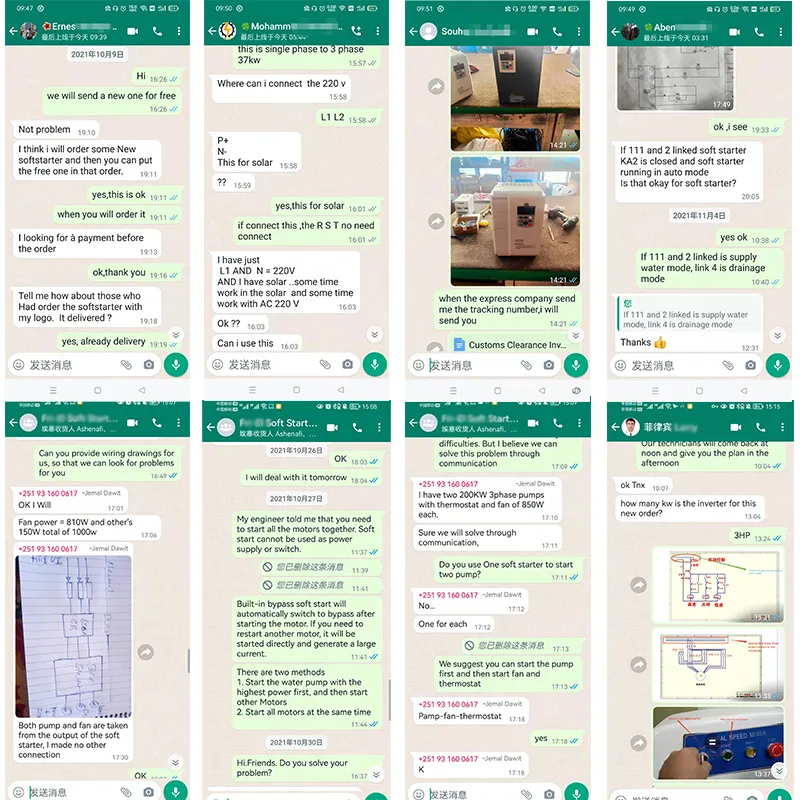

Customer Photos
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
Certifications
Wce Supplier Price 5.5kw 30kw 37kw 55kw 320kw 415V 380V 660V 690V AC Motor Control 50Hz 60Hz Soft Starter Smart
FAQ
Can you provide price sheet and catalog to me ?
We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.

Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost

What's about your delivery time?
All type we have stock,after we receive payment,we will send you within two days.

How to pay it?
You can pay it to ******,Paypal,bank.

How about your warrantly time?
Our warrantly time is 12months,if the goods or accessories can't work,we send new one to you
